Wearproof industrial ceramic mosaic alumina sheet/tile for large machine

  • FOB Price:USD 1.38~3.58 / Piece
  • Min Order: 1 Pieces
  • Supply Ability:1000 Tons per Month
  • Payment Terms:L/C, D/A, D/P, T/T, Western Union, MoneyGram, Other
  • Place of Origin:China
  • Port:qingdao
  • Brand Name:win-ceramic
  • Model Number:ceramic square plate as custom
  • Shipment:we have stock all the time
  • Package:Normally the standard package is 15-25KG/carton, 1-1.5tons/pallet, 20-25tons for 20'container

Not exactly what you want? Post a Buying Request

Zibo Win-Ceramic Material Co, . Ltd.

  • China
  • Busineess Type:Trading Company
  • Main Products:alumina ceramic ball, alumina ceramic grinding ball, zirconia ceramic grinding ball, alumina ceramic lining tile
  • Product Info
  • Contact Info

Product Details:

  • Size:Other

  • Material:Ceramic Tiles

  • Usage:Interior Tiles

  • Function:Acid-Resistant,Antibacterial,Non-Slip,Wear-Resistant

  • Surface Treatment:Full Body Tiles

  • Feature:Glazed Metallic Tiles

  • Technique:Other

  • Color Family:Whites

  • Tile Type:Borders

Specifications:

  • Place of Origin:Shandong, China (Mainland) Type:Ceramic Plates Application:Industrial Ceramic Material:Alumina Ceramic Model Number:ceramic square plate as customized Brand Name:Win-Ceramic color:white Shape:Hexgon, Square, etc. forming way:dry pressing

    Description:

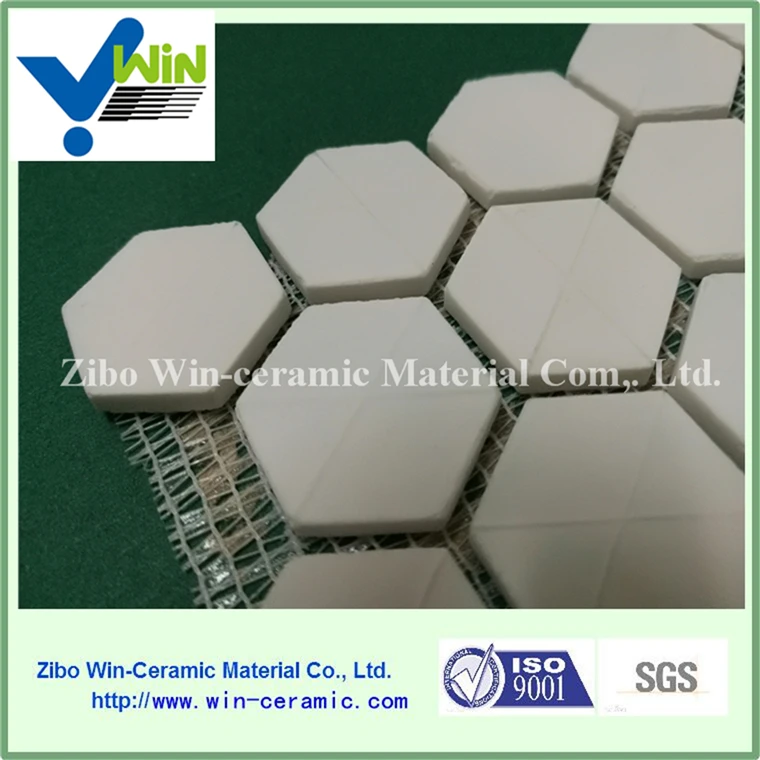

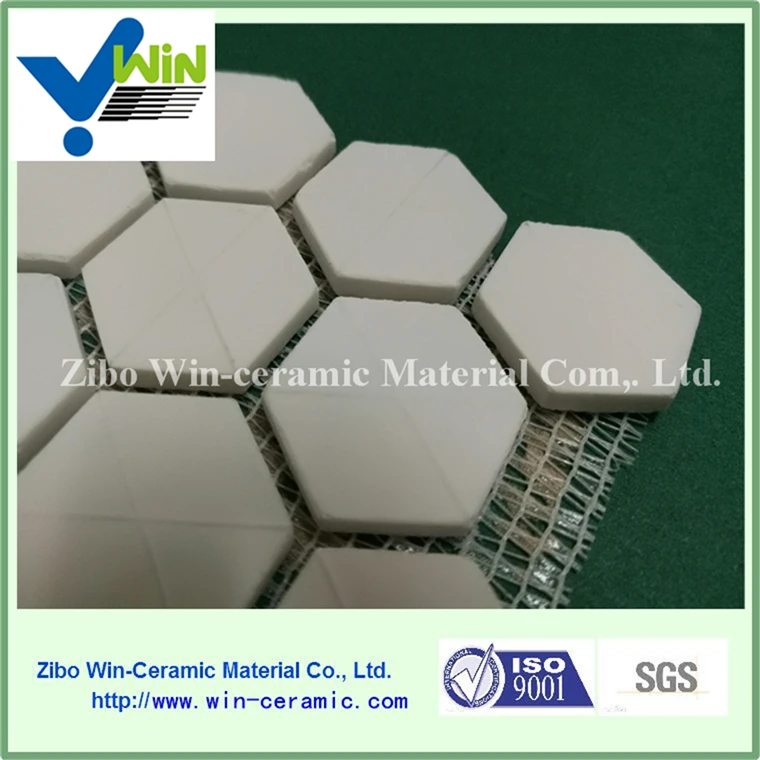

    Wearproof industrial ceramic mosaic alumina sheet/tile for large machine

    High wear resistance alumina ceramic pipe lining tileHigh wear resistance alumina ceramic pipe lining tile


    Product Description

    Application

     1.Wear-resistant material for surfaces of delivery equipment such as Chutes / Hoppers,  Cyclone separators, Elbows,  Cyclones,  Convey or pulleys.

     2.Wear-resistant material for liquid flowing pipes of petroleum,  mining,  steel , power

     3.Anti-corrosion from chemical substances

     4.Thermal impact

    Tiling will ensure significant savings on equipment and labour by supplying innovative solutions. Our products are used extensively wherever material wear due to abrasion, impact, friction, heat or corrosion.

    Chemical composition and physical properties

    Performance Index

    92Series

    95Series

    Al2O3

    >=92%

    >=95%

    Fe2O3

    <=0.02

    <=0.02

    Compressive strength(Mpa)



    >=2000



    >=2250

    Hardness mohs



    >=9



    >=9

    Volume density(g/cm3)



    >=3.60



    >=3.70

    Water absorption(%)



    <=0.01



    <=0.01

    Color of product

    white



    white


    The alumina ceramic square plate Dimension: length*length*thickness(mm)

    10*10*3, 10*10*4, 10*10*5, 10*10*6, 10*10*8, 10*10*10, 17.5*17.5*3.2, 17.5*17.5*4, 17.5*17.5*5, 17.5*17.5*6, 17.5*17.5*8, 17.5*17.5*10, 17.5*17.5*15, 20*20*4, 20*20*5, 20*20*6, 20*20*8, 20*20*10, 20*20*15, 24*24*10

    Hexgonal ceramic plate:12*12*3, 12*12*6, 12*12*9, 12*12*13

     The alumina tiles are dispatched in strong carton with seperate paper card as buffering, palletised and shrink-wrapped for better conservation, being prepared for their immediate delivery.

    Normally the standard package is 15-25KG/carton, 1-1.5tons/pallet, 20-25tons for 20'container
